MODEL:

Rugged / Sealed LCDs

SD215/ML

21.5” waterproof, high-bright/sunlight readable monitor with sealed cables

Get a Quote Accessories

Login to View Pricing and Product Drawings

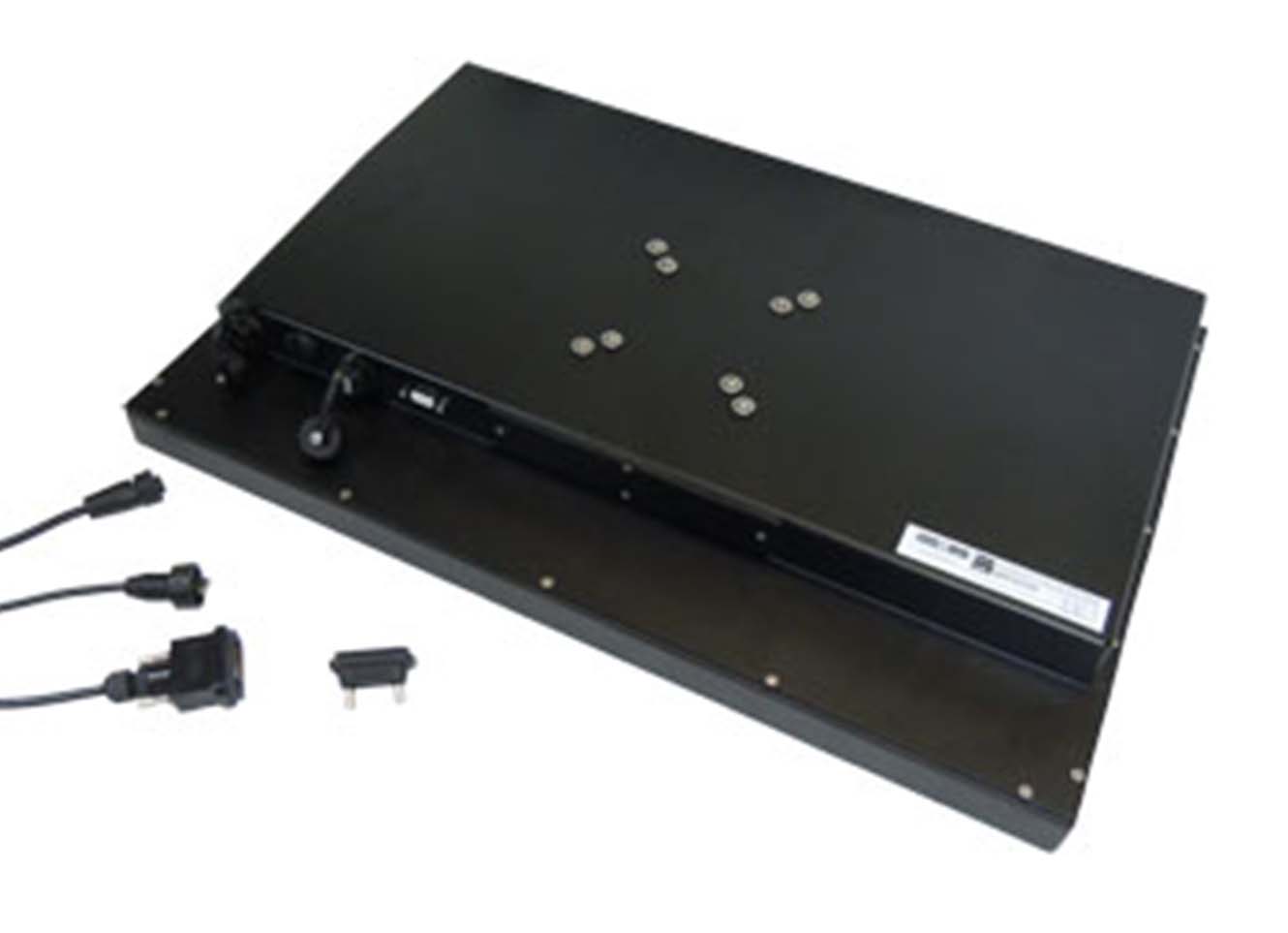

Marine-grade, IP67 sealed rugged monitor with a high-bright or sunlight readable 21.5” LCD and touchscreen. Ideal for marine and outdoor applications. Comes with a sealed cable set for video input (HDMI/VGA/composite), USB, and power. Low-power LED, VESA or panelmount support and available options make this a versatile choice for touch environments.

View all Products

Product tags

Weather Proof options

PC Performance

PC I/O Options

Screen Options

Mounting Options

Material

Steel/Stainless Steel

Sunlight Readable

Remote 0-100 dimming

Standard Features

High Bright 800 nit 21.5” widescreen (16:9) LCD
Low power LED back lights
Custom rugged aluminum chassis
HDMI video input
IP67 Sealed and Waterproof
integrated Touch Screen
VESA 75mm and 100mm mounting support
Waterproof panelmount connectors with 2m long mating cables
Sealed OSD membrane for on-screen control
Front-mounted sealed dimming knob (0-100%)
12V DC input with external AC adapter

Specifications

Brightness: 800-1000 cd/m²
Dimensions: 553mm x 380mm x 90mm
Native resolution 1280x1024 (sync up to 1920x1080)
Power Consumption: 65W (Typical)
Horizontal Viewing Angle: 150 degrees
Vertical Viewing Angle: 120 degrees
Operating Temperature: -20° to 45 °C (-4° to 113°F)
Storage Temperature: -20° to 60°C (- 4 to 140F
Operating Humidity: 20% ~ 90% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)
Operating Altitude: -1,000 to 10,000 (rel. to sea level)
Storage Altitude: -1,000 to 40,000

CPU Options

Sunlight readable 1000nit display with optical enhancements (SD215ML)
VGA and composite inputs
No dimming knob or external dimming knob with sealed cable
Resistive or projected capacitive touch glass
Extended length cables (5m)
Double-ended sealed cable set
Side panel mount L-brackets
Extended operating temperature
Ranged 9-32V DC input

Configuration Options
